using UnityEngine;
using System.Collections;
using System.Collections.Generic;

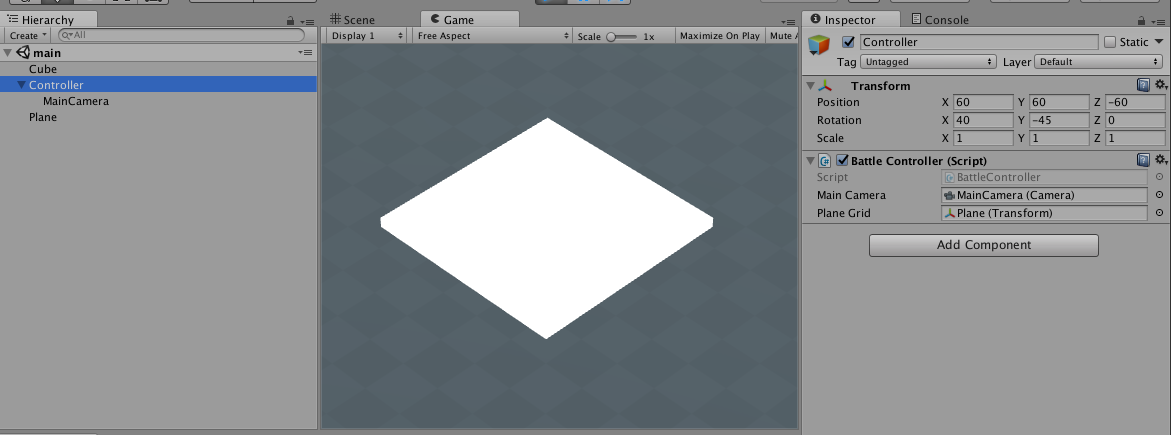

public class BattleController : MonoBehaviour
{
private int mapRows;
private int mapCols;
public Camera MainCamera;
private readonly Plane refPlaneXZ = new Plane(new Vector3(0, 1, 0), 0);
private float cameraOffset;
/// <summary>
/// 是否使用正交相机
/// </summary>
public const bool IsCameraOrthographic = false;
/// <summary>
/// 用于碰撞检测的底板
/// </summary>

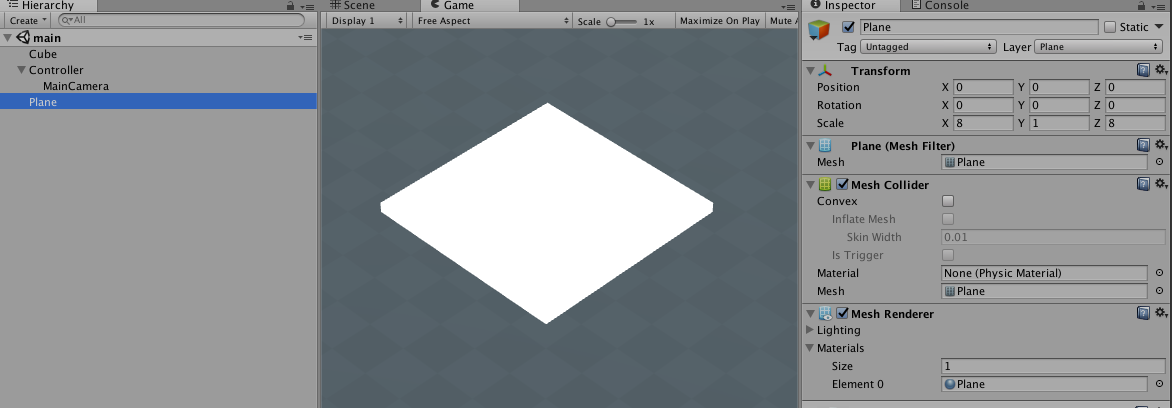

public Transform PlaneGrid;
/// <summary>
/// 底板缩放比例，使得没格子的地方也可以点击到
/// </summary>
public const int PlaneGridScale = 2;
/// <summary>
/// 是否正在移动地图
/// </summary>
private bool isMovingMap;
/// <summary>
/// 是否按下鼠标
/// </summary>
private bool isClickedDown;
public LayerMask PlaneLayerMask { get; set; }
/// <summary>
/// 一个看不到的位置
/// </summary>
public readonly Vector3 InvisiblePos = new Vector3 (10000, 10000, 10000);
/// <summary>
/// 一个看不到的位置
/// </summary>
public readonly Vector2 InvisibleScreenPos = new Vector2 (10000, 10000);
/// <summary>
/// 上一次点击的位置
/// </summary>
private Vector2 navigateLastPosition;
private const float MaximumOrthographicSize = 7.4f;
private const float MinimumOrthographicSize = 3.4f;
private const float MaximumFOV = 10f;
private const float MinimumFOV = 5.4f;
private const float RayCastMaxDistance = 1000;
private const float NavigateZoomSpeed = 10f;
private const float MinPinchSpeed = 2.0F;
private const float MinOffset = 0.3f;
/// <summary>
/// 是否正在手机上运行
/// </summary>
private bool isMobilePlatform;
void Awake ()
{
MainCamera.orthographic = IsCameraOrthographic;
if (MainCamera.orthographic) {
this.transform.position = new Vector3 (21.3f, 30f, -21.3f);
this.transform.eulerAngles = new Vector3 (45f, -45f, 0f);
MainCamera.orthographicSize = 6.4f;
MainCamera.transform.localPosition = Vector3.zero;
MainCamera.transform.localEulerAngles = Vector3.zero;
} else {
this.transform.position = new Vector3 (60f, 60f, -60f);
this.transform.eulerAngles = new Vector3 (40f, -45f, 0f);
MainCamera.fieldOfView = 8f;
MainCamera.transform.localPosition = Vector3.zero;
MainCamera.transform.localEulerAngles = Vector3.zero;
}
isMobilePlatform = (Application.platform == RuntimePlatform.Android || Application.platform == RuntimePlatform.IPhonePlayer);
PlaneLayerMask = 1 << LayerMask.NameToLayer ("Plane");
Ray ray = MainCamera.ViewportPointToRay (new Vector2 (0.5f, 0.5f));
Vector3 center = GetIntersectionPoint (ray);
cameraOffset = Mathf.Sqrt(center.x * center.x + center.z * center.z);
mapRows = 40;
mapCols = 40;
PlaneGrid.localScale = new Vector3 (mapCols * PlaneGridScale / 10f, 1, mapRows * PlaneGridScale / 10f);
}
void Update ()
{
// 鼠标按下
if (Input.GetMouseButtonDown(0))
{
isClickedDown = true;
navigateLastPosition = InvisibleScreenPos;
isMovingMap = false;
navigateLastPosition = Input.mousePosition;
}
if (isClickedDown)
{
if (navigateLastPosition != InvisibleScreenPos)
{
if (!isMobilePlatform)
{
Vector3 deltaPos = GetDeltaPos(Input.mousePosition, navigateLastPosition);
if (deltaPos != InvisiblePos && deltaPos.magnitude > MinOffset && !isMovingMap) {
isMovingMap = true;
}
if (isMovingMap) {
Vector3 cameraWorldPos = MainCamera.transform.position + deltaPos;
SetCameraPosition (cameraWorldPos);
navigateLastPosition = Input.mousePosition;
}
}
else
{
if (Input.touchCount == 1) {
Touch touch = Input.GetTouch (0);
if (touch.phase == TouchPhase.Began)
{
navigateLastPosition = touch.position;
}
if (touch.phase == TouchPhase.Moved) {
Vector3 deltaPos = GetDeltaPos(touch.position, navigateLastPosition);
if (deltaPos != InvisiblePos && deltaPos.magnitude > MinOffset && !isMovingMap) {
isMovingMap = true;
}
if (isMovingMap) {
Vector3 cameraWorldPos = MainCamera.transform.position + deltaPos;
SetCameraPosition (cameraWorldPos);
navigateLastPosition = touch.position;
}
}
}
}
}
}
// 鼠标弹起
if (Input.GetMouseButtonUp(0))
{
isClickedDown = false;
}
// 可以移动物体时，点击城墙边缘时，不允许缩放屏幕
if (!isMobilePlatform)
{
// 鼠标滚轮缩放
if (IsCameraOrthographic) {
MainCamera.orthographicSize = Mathf.Clamp (
MainCamera.orthographicSize + (-1 * NavigateZoomSpeed * Input.GetAxis ("Mouse ScrollWheel")),
MinimumOrthographicSize, MaximumOrthographicSize);
SetCameraPosition (MainCamera.transform.position);
} else {
MainCamera.fieldOfView = Mathf.Clamp (
MainCamera.fieldOfView + (-1 * NavigateZoomSpeed * Input.GetAxis ("Mouse ScrollWheel")),
MinimumFOV, MaximumFOV);
SetCameraPosition (MainCamera.transform.position);
}
}
else
{
// 屏幕缩放
if (Input.touchCount == 2) {
Touch touch0 = Input.GetTouch (0);
Touch touch1 = Input.GetTouch (1);
if (touch0.phase == TouchPhase.Moved || touch1.phase == TouchPhase.Moved) {
Vector2 curDist = touch0.position - touch1.position;
Vector2 prevDist = (touch0.position - touch0.deltaPosition) - (touch1.position - touch1.deltaPosition);
float touchDelta = curDist.magnitude - prevDist.magnitude;
float speedTouch0 = touch0.deltaPosition.magnitude / touch0.deltaTime;
float speedTouch1 = touch1.deltaPosition.magnitude / touch1.deltaTime;
if (speedTouch0 > MinPinchSpeed || speedTouch1 > MinPinchSpeed) {
if (IsCameraOrthographic) {
MainCamera.orthographicSize -= touchDelta * 0.03f;
MainCamera.orthographicSize = Mathf.Clamp (MainCamera.orthographicSize, MinimumOrthographicSize, MaximumOrthographicSize);
} else {
MainCamera.fieldOfView -= touchDelta * 0.03f;
MainCamera.fieldOfView = Mathf.Clamp (MainCamera.fieldOfView, MinimumFOV, MaximumFOV);
}
// 缩放屏幕时，设置为正在移动地图
isMovingMap = true;
}
SetCameraPosition (MainCamera.transform.position);
}
if (touch0.phase == TouchPhase.Ended) {
navigateLastPosition = touch1.position;
} else if (touch1.phase == TouchPhase.Ended) {
navigateLastPosition = touch0.position;
}
}
}
}
public void MoveCameraToPosition (Vector3 targetPos)
{
Ray cameraCenterRay = MainCamera.ViewportPointToRay(new Vector3(0.5f, 0.5f));
RaycastHit cameraHit;
if (Physics.Raycast(cameraCenterRay, out cameraHit, RayCastMaxDistance, PlaneLayerMask)) {
Vector3 camViewCenter = cameraHit.point;
Vector3 camDestPos = targetPos- camViewCenter;
camDestPos.y = 0;
Vector3 cameraWorldPos = MainCamera.transform.position + camDestPos;
SetCameraPosition (cameraWorldPos);
}
}
/// <summary>
/// 通过射线获取屏幕上两个坐标的世界坐标的偏移量
/// </summary>
Vector3 GetDeltaPos (Vector2 mousePos, Vector2 lastPos)
{
Ray ray = MainCamera.ScreenPointToRay (mousePos);
RaycastHit hitInfo;
if (Physics.Raycast (ray, out hitInfo, RayCastMaxDistance, PlaneLayerMask)) {
Ray lastRay = MainCamera.ScreenPointToRay (lastPos);
RaycastHit lastHitInfo;
if (Physics.Raycast (lastRay, out lastHitInfo, RayCastMaxDistance, PlaneLayerMask)) {
Vector3 deltaPos = hitInfo.point - lastHitInfo.point;
deltaPos.y = 0;
deltaPos *= -1;
return deltaPos;
}
}
return InvisiblePos;
}
/// <summary>
/// 限制视野范围
/// </summary>
void SetCameraPosition (Vector3 worldPos)
{
if (IsCameraOrthographic) {
Vector3 localPos = transform.InverseTransformPoint(worldPos);
float halfHeight = MainCamera.orthographicSize;
float halfWidth = halfHeight * MainCamera.aspect;
Vector3 cameraLocalPos = localPos;
float min = (float)Mathf.Min (mapRows, mapCols);
float max = (float)Mathf.Max (mapRows, mapCols);
float halfSqrtValue = Mathf.Sqrt (min * min + max * max) * 0.5f;
float angle = Mathf.Atan (min / max);
float leftAngle = 45 - angle;
float length = halfSqrtValue * Mathf.Cos (leftAngle);
float lengthX = length;
float x1 = halfWidth - lengthX;
float x2 = lengthX - halfWidth;
cameraLocalPos.x = Mathf.Clamp (cameraLocalPos.x, Mathf.Min (x1, x2), Mathf.Max (x1, x2));
float lengthY = length / Mathf.Sqrt (2);
float y1 = halfHeight - lengthY;
float y2 = lengthY - halfHeight;
cameraLocalPos.y = Mathf.Clamp (cameraLocalPos.y, Mathf.Min (y1, y2), Mathf.Max (y1, y2));
cameraLocalPos.z = 0;
MainCamera.transform.localPosition = cameraLocalPos;
} else {
Vector3 localPos = transform.InverseTransformPoint(worldPos);
float min = (float)Mathf.Min (mapRows, mapCols);
float max = (float)Mathf.Max (mapRows, mapCols);
float halfSqrtValue = Mathf.Sqrt (min * min + max * max) * 0.5f;
float angle = Mathf.Atan (min / max);
float leftAngle = 45 - angle;
float length = halfSqrtValue * Mathf.Cos (leftAngle);
Vector3 camCenter = GetIntersectionPoint(MainCamera.ScreenPointToRay(new Vector3(Screen.width * 0.5f, Screen.height * 0.5f, 0)));
Vector3 camRight = GetIntersectionPoint(MainCamera.ScreenPointToRay(new Vector3(Screen.width, Screen.height * 0.5f, 0)));
Vector3 camLeft = GetIntersectionPoint(MainCamera.ScreenPointToRay(new Vector3(0, Screen.height * 0.5f, 0)));
Vector3 camUp = GetIntersectionPoint(MainCamera.ScreenPointToRay(new Vector3(Screen.width * 0.5f, Screen.height, 0)));
float offset = cameraOffset;
float halfCameraWidth = Vector3.Distance (camRight, camLeft) * 0.5f;
float halfCameraHeight = Vector3.Distance (camUp, camCenter);
float x1 = halfCameraWidth - length;
float x2 = length - halfCameraWidth;
localPos.x = Mathf.Clamp (localPos.x, Mathf.Min (x1, x2), Mathf.Max (x1, x2));
float y1 = halfCameraHeight - length + offset;
y1 = y1 / Mathf.Sqrt (2);
float y2 = length - halfCameraHeight + offset;
y2 = y2 / Mathf.Sqrt (2);
localPos.y = Mathf.Clamp (localPos.y, Mathf.Min (y1, y2), Mathf.Max (y1, y2));
float z1 = halfCameraHeight - length + offset;
z1 = z1 / Mathf.Sqrt (2);
float z2 = length - halfCameraHeight + offset;
z2 = z2 / Mathf.Sqrt (2);
localPos.z = Mathf.Clamp (localPos.z, Mathf.Min (z1, z2), Mathf.Max (z1, z2));
MainCamera.transform.localPosition = localPos;
}
}
/// Method for retrieving the intersection-point between the given ray and the ref plane.
public Vector3 GetIntersectionPoint(Ray ray) {
float distance = 0;
bool success = refPlaneXZ.Raycast(ray, out distance);
if (success == false) {
Debug.LogError("Failed to compute intersection between camera ray and reference plane.");
}
return (ray.origin + ray.direction * distance);
}
}
|
